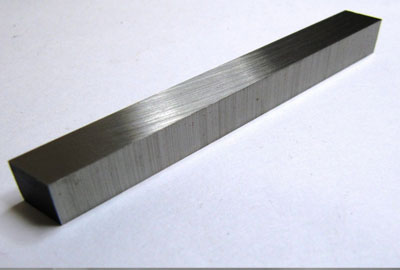

Mat.No. 1.3202, DIN S12-1-4-5, AISI T15

Mat.No. 1.3202, DIN S12-1-4-5, AISI T15

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.3202 S12-1-4-5 - T15 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 1.38 max. 0.45 max. 0.40 4.15 0.85 - 3.75 12.00 Co: 4.75 Description High performance high-speed tungsten steel. The high V content gives the steel the best cutting performance and durability. The Co content offers high tempering durability and hot hardness. The steel has proved particularly beneficial in cases where hard materials being processed...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Designation by Standards

    Mat. No. DIN EN AISI
    1.3202 S12-1-4-5 - T15

    Chemical Composition (in weight %)

    C Si Mn Cr Mo Ni V W Others
    1.38 max. 0.45 max. 0.40 4.15 0.85 - 3.75 12.00 Co: 4.75

    Description
    High performance high-speed tungsten steel. The high V content gives the steel the best cutting performance and durability. The Co content offers high tempering durability and hot hardness. The steel has proved particularly beneficial in cases where hard materials being processed cause a high degree of wear of the cutting surface, and where the cutting surface is at an elevated temperature.

    Applications
    High speed steel, for heavy-duty operations. Turning knives, milling cutters for rough machining, smoothing.

    Physical properties (avarage values) at ambient temperature
    Modulus of elasticity [103 x N/mm2]: 217
    Density [g/cm3]: 8.40
    Thermal conductivity [W/m.K]: 19.0
    Electric resistivity [Ohm mm2/m]: 0.65
    Specific heat capacity[J/g.K]: 0.46

    Coefficient of Linear Thermal Expansion 10-6 oC-1

    20-100oC 20-200oC 20-300oC 20-400oC 20-500oC 20-600oC 20-700oC
    9.03 10.16 10.68 11.09 11.64 12.08 12.31

    Soft Annealing
    Heat to 820-860oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 280.

    Stress Relieving
    Stress relieving to remove machining stresses should be carried out by heating to 600-650oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

    Hardening
    1st pre-heating: 400oC. 2nd and 3rd pre-heating: 850oC and 850oC and 1050oC. Harden from a temperature of 1190-1240oC followed by oil or air quenching or warm bath approx. 550oC/air.

    Tempering
    Tempering temperature: 3 x at 540-580oC. Hardness after tempering is 65-67 HRC.

    Tempering Diagram


    Click the image to enlarge the diagram.

    Forging
    Hot forming temperature: 1100-900oC.

    Machinability
    No data.

    Corrosion Resistance
    Corrosion resistance of this alloy is better than that of plain carbon steels. However it will rust unless given protective treatment.

    Forms manufactured: Please see the Dimensional Sales Program.
