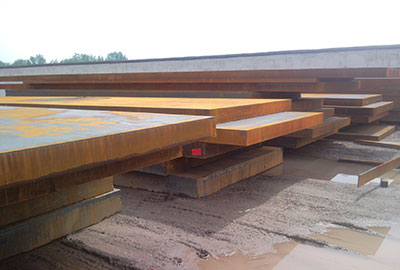

Mat.No. 1.1178, DIN Ck30, AISI 1030

Mat.No. 1.1178, DIN Ck30, AISI 1030

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.1178 Ck30 - 1030 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.31 max.0.40 0.65 max. 0.40 max. 0.10 max. 0.40 - - (Cr+Mo+Ni) = max. 0.63 Description This is a higher carbon (0.30%) manganese steel in the plain carbon steel alloy family. It provides greater strength than the lower carbon grades while still retaining reasonable ductility. Applications CK30 steel is generally used in the quenched and tempered cond...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Designation by Standards

    Mat. No. DIN EN AISI
    1.1178 Ck30 - 1030

    Chemical Composition (in weight %)

    C Si Mn Cr Mo Ni V W Others
    0.31 max.0.40 0.65 max. 0.40 max. 0.10 max. 0.40 - - (Cr+Mo+Ni) = max. 0.63

    Description This is a higher carbon (0.30%) manganese steel in the plain carbon steel alloy family. It provides greater strength than the lower carbon grades while still retaining reasonable ductility. Applications CK30 steel is generally used in the quenched and tempered condition for strength. Applications include machinery parts where strength and hardness are requisites.  Physical properties (avarage values) at ambient temperature Modulus of elasticity [103 x N/mm2]: 200  Density [g/cm3]: 7.85 Thermal conductivity [W/m.K]: 51.2  Specific heat capacity[J/g.K]: 0.486 Soft Annealing A full anneal is accomplished at 870 to 980oC followed by slow cooling in the furnace. A stress relief anneal may be done at 540oC. Hardening Heat treat at 810 to 870oC and water quench, followed by a tempering treatment. Tempering Temper, after heat treat and quench, at 320 to 540oC depending upon strength level desired.  Forging Hot forming temperature: 1050-850oC.  Machinabilty Machinabilty of CK30 steel is rated at 70 % that of the AISI 1112 steel considered to be 100% machinable as a reference.  Corrosion Resistance  This is a plain carbon steel and will rust unless protected. Welding  CK30 steel may be welded by all methods. In heavy sections it is advisable to pre-heat at 150 to 260oC and post-heat at 540 to 650oC for welding. Cold working  Cold working of CK30 steel in the annealed condition may be don by conventional methods. A full or stress relief anneal may be needed after cold working. Forms manufactured: Please see the Dimensional Sales Program.  Disclaimer The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available. Unless otherwise specified, registered trademarks are property of Metal Ravne company. Copyright 2015 by Metal Ravne. All rights reserved. Contact our Sales Office for more information.
