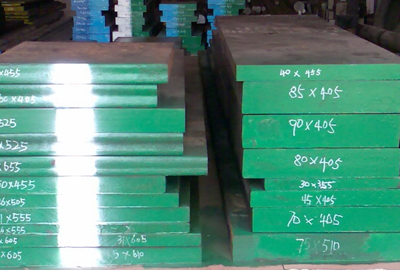

Mat.No. 1.2662, DIN X30WCrCoV9-3

Mat.No. 1.2662, DIN X30WCrCoV9-3

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.2662 X30WCrCoV9-3 - - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.30 0.23 0.30 2.35 - 0.25 8.50 - Co: 2.05 Description Hot work, tungsten-chromium-cobalt type tool steel that exhibits excellent wear and resistance to softening at elevated temperatures.  Applications Dies, mandrels, punchers, pressing and forging dies.  Physical properties (avarage values) at ambient temperature Modulus of elasticity [103 x N/...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Designation by Standards

    Mat. No. DIN EN AISI
    1.2662 X30WCrCoV9-3 - -

    Chemical Composition (in weight %)

    C Si Mn Cr Mo Ni V W Others
    0.30 0.23 0.30 2.35 - 0.25 8.50 - Co: 2.05

    Description
    Hot work, tungsten-chromium-cobalt type tool steel that exhibits excellent wear and resistance to softening at elevated temperatures.

    Applications
    Dies, mandrels, punchers, pressing and forging dies.

    Physical properties (avarage values) at ambient temperature
    Modulus of elasticity [103 x N/mm2]: 210
    Density [g/cm3]: 7.80

    Soft Annealing
    Heat to 820-840oC, cool slowly in furnace, 4-6 hours. This will produce a maximum Brinell hardness of 240.

    Stress Relieving
    Stress relieving to remove machining stresses should be carried out by heating to 650oC, holding for 1-2 hours at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

    Hardening
    Harden from a temperature of 1130-1180oC followed by oil, air quenching or warm bath quenching approx. 500oC. Hardness after quenching is about 52 HRC.

    Tempering
    Tempering temperature: 570-700oC, at least 2-3x.

    Tempering Temperature (oC) vs. Hardness (HRC)

    400oC 450oC 500oC 550oC 600oC 650oC 650oC
    51 51 51.7 52 52 48 38

    Tempering Diagram


    Click the image to enlarge the diagram.

    Forging
    Hot forming temperature: 1100-900oC.

    Machinability
    No data.

    Forms manufactured: Please see the   Dimensional Sales Program.

    Disclaimer
    The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
