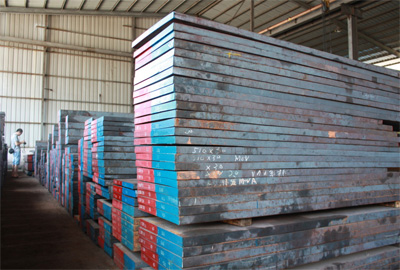

Mat.No. 1.2738, DIN 40CrMnNiMo8-6-4, AISI P20 Mod

Mat.No. 1.2738, DIN 40CrMnNiMo8-6-4, AISI P20 Mod

Short Description:

  Designation by Standards   Mat. No. DIN EN AISI 1.2738 40CrMnNiMo8-6-4 - P20 Mod.   Chemical Composition (in weight %)   C Si Mn Cr Mo Ni V W Others 0.40 0.30 1.45 1.95 0.20 1.05 - - -   Description This steel is in the category generally labeled as Mold Steels. Nickel and chromium are the alloying elements for hardness and toughness. Cold work tool steel with good machinability, excellent polishability, suitable for texturing. Improved through harde...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags



    Designation by Standards



    Mat. No. DIN EN AISI
    1.2738 40CrMnNiMo8-6-4 - P20 Mod.



    Chemical Composition (in weight %)



    C Si Mn Cr Mo Ni V W Others
    0.40 0.30 1.45 1.95 0.20 1.05 - - -



    Description
    This steel is in the category generally labeled as Mold Steels. Nickel and chromium are the alloying elements for hardness and toughness. Cold work tool steel with good machinability, excellent polishability, suitable for texturing. Improved through hardenability comapred to Mat.No. 1.2311.

    Applications
    Typically used for relatively low temperature applications such as die casting dies and injection molds, synthetic plastic moulds dies, for large moulds.

    Physical properties (avarage values) at ambient temperature
    Modulus of elasticity [103 x N/mm2]: 205
    Density [g/cm3]: 7.80
    Thermal conductivity [W/m.K]: 29.0
    Specific heat capacity[J/g.K]: 0.46

    Coefficient of Linear Thermal Expansion 10-6 oC-1



    20-100oC 20-200oC 20-300oC 20-400oC 20-500oC 20-600oC 20-700oC
    11.7 12.3 13.0 13.3 13.7 13.7 14.0



    Continuous Cooling Transformation (CCT) Diagram

    Soft Annealing
    Heat to 710-740oC, cool slowly. This will produce a maximum Brinell hardness of 235.

    Stress Relieving
    Stress relieving to remove machining stresses should be carried out by heating to 650oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

    Hardening
    Harden from a temperature of 840-880oC followed by oil, air ot warm bath (180-220oC) quenching. Hardness after quenching is 52 HRC.

    Tempering
    Tempering temperature: See the data bellow.

    Tempering Temperature (oC) vs. Hardness (HRC) vs. Tensile Stregth (N/mm2)



    100oC 200oC 300oC 400oC 500oC 600oC 700oC
    52 51 49 46 42 36 28
    1790 1730 1620 1480 1330 1140 920



    Tempering Diagram

    Forging
    Hot forming temperature: 1093-898oC.

    Machinability
    Machinability is relatively good at about 80% that of the W group water hardening steels.

    Welding
    This alloy is weldable by conventional methods. Contact the alloy supplier for details and weld procedures.

    Disclaimer
    The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
