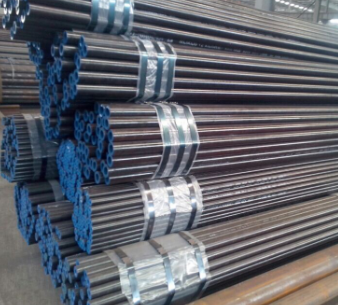

Seamless API 5L LINE PIPE
Short Description:
API 5L LINE PIPE Specification API 5L covers seamless and welded pipe suitable for use in conveying gas, water, oil, and other liquefied media. PSL 1 GRADE Chemical Composition Mechanical Property C (Max) Mn (Max) P (Max) S (Max) TENSILE ( Min ) YIELD ( Min ) Psi X 1000 Mpa Psi X 1000 Mpa A25 CL I 0.21 0.60 0.030 0.030 45 310 25 172 CL II 0.21 0.60 0.030 0.030 A 0.22 0.90 0.030 0.030 48 331 30 207 ...
Product Detail
FAQ
Product Tags
API 5L LINE PIPE
|
PSL 1
|
|||||||||
|
GRADE |
Chemical Composition |
Mechanical Property |
|||||||
|
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
TENSILE ( Min ) |
YIELD ( Min ) |
||||
|
Psi X 1000 |
Mpa |
Psi X 1000 |
Mpa |
||||||
|
A25 |
CL I |
0.21 |
0.60 |
0.030 |
0.030 |
45 |
310 |
25 |
172 |
|
CL II |
0.21 |
0.60 |
0.030 |
0.030 |
|||||
|
A |
0.22 |
0.90 |
0.030 |
0.030 |
48 |
331 |
30 |
207 |
|
|
B |
0.26 |
1.20 |
0.030 |
0.030 |
60 |
414 |
35 |
241 |
|
|
X42 |
0.26 |
1.30 |
0.030 |
0.030 |
60 |
414 |
42 |
290 |
|
|
X46 |
0.26 |
1.40 |
0.030 |
0.030 |
63 |
434 |
46 |
317 |
|
|
X52 |
0.26 |
1.40 |
0.030 |
0.030 |
66 |
455 |
52 |
359 |
|
|
X56 |
0.26 |
1.40 |
0.030 |
0.030 |
71 |
490 |
56 |
386 |
|
|
X60 |
0.26 |
1.40 |
0.030 |
0.030 |
75 |
517 |
60 |
414 |
|
|
X65 |
0.26 |
1.45 |
0.030 |
0.030 |
77 |
531 |
65 |
448 |
|
|
X70 |
0.26 |
1.65 |
0.030 |
0.030 |
82 |
565 |
70 |
483 |
|
|
PSL 2 |
||||||||||||
|
GRADE |
Chemical Composition |
Mechanical Property |
||||||||||
|
C |
Mn |
P |
S |
Tensile |
Yield |
C. E. IMPACT ENERGY |
||||||
|
Psi x 1000 |
Mpa |
Psi x 1000 |
Mpa |
PCM |
IIW |
J |
FT/LB |
|||||
|
B |
0.22 |
1.20 |
0.025 |
0.015 |
60 – 110 |
414 – 758 |
35 – 65 |
241 – 448 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X42 |
0.22 |
1.30 |
0.025 |
0.015 |
60 – 110 |
414 – 758 |
42 – 72 |
290 – 496 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X46 |
0.22 |
1.40 |
0.025 |
0.015 |
63 – 110 |
434 – 758 |
46 – 76 |
317 – 524 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X52 |
0.22 |
1.40 |
0.025 |
0.015 |
66 – 110 |
455 – 758 |
52 – 77 |
359 – 531 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X56 |
0.22 |
1.40 |
0.025 |
0.015 |
71 – 110 |
490 – 758 |
56 – 79 |
386 – 544 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X60 |
0.22 |
1.40 |
0.025 |
0.015 |
75 – 110 |
517 – 758 |
60 – 82 |
414 – 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X65 |
0.22 |
1.45 |
0.025 |
0.015 |
77 – 110 |
531 – 758 |
65 – 82 |
448 – 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X70 |
0.22 |
1.65 |
0.025 |
0.015 |
82 – 110 |
565 – 758 |
70 – 82 |
483 – 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
|
X80 |
0.22 |
1.90 |
0.025 |
0.015 |
90 – 120 |
621 – 827 |
80 – 102 |
552 – 705 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
