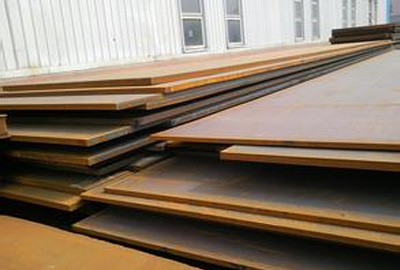

SA 387 Grade 22 Class 2 Steel Plate

SA 387 Grade 22 Class 2 Steel Plate

Short Description:

Bozhong is a SA 387 Grade 22 Class 2 Steel Plate manufacturers, suppliers and stockists, delivering to the whole of the world.We are having largest inventory & ready stock of around 200 tons of SA 387 Grade 22 Class 2 Steel Plate in different size, grades & cuts.Our manufacturing program is supported by intensive in-house product inspection and testing and accredited to meet all the most recognized international standards, including ISO 9001:2008 Bozhong speci...


Product Detail

FAQ

Product Tags

Bozhong is a SA 387 Grade 22 Class 2 Steel Plate manufacturers, suppliers and stockists, delivering to the whole of the world.We are having largest inventory & ready stock of around 200 tons of SA 387 Grade 22 Class 2 Steel Plate in different size, grades & cuts.Our manufacturing program is supported by intensive in-house product inspection and testing and accredited to meet all the most recognized international standards, including ISO 9001:2008

Bozhong specializes in SA 387 Grade 22 Class 2 Steel Plate .With 25 years of experience in supplying & exporting SA 387 Grade 22 Class 2 Steel Plate we offer high quality, lower cost but the best service. As a result to that our export account today is in over 45 countries some of them are Iran, Saudi Arabia, United Arab Emirates, Singapore, Malaysia We welcome your inquiries.

We are specialized in offering precision engineered SA 387 Steel Plate, which are used in various engineering applications and can be availed in various grades like ASTM A387 Grade 11 Class 2 , Grade 22 Class 2, Grade 5 Class 2, Grade 9 Class 2, Grade 11 Class 2, Grade 12 Class 2, Grade 91 Class 2. these grades are available in the form of SA 387 Steel Plate

SA 387 Grade 22 Class 2 Steel Plate supplied by us are accepted by clients in various spheres of the industries ranging from basic industries such as Sugar, Paper, Textile, Dairy, Engineering to more complex such as Oil & Gas, Petrochemical, Chemical & Fertilizers, Power Generation and Nuclear Industries.We are also have huge ready stock of Chrome Moly Steel Plate, Boiler Plate,  HIC plate, Pressure Vessel Steel plate, Abrasion Resistant Steel Plates, Offshore & Structural Steel Plate, Quenched & Tempered Steel plate , High Nickel Alloy plate, Stainless Steel plate,Duplex Stainless Steel Plate, Clad plate, 16MO3 Steel Plate

Plate certified to ASTM A387 Grade 22 Class 2 and ASME SA387 Grade 22 Class 2 is available from Bozhong These grades of steel are chrome moly pressure vessel platesfor high temperature applications. As well as supplying in plate form, Bozhong can cut plates to size and also cut to specific shapes.

We supply ASME SA387 Grade 22 Class 2 plates to global fabricators serving the oil, gas and petrochemical industry. These industries require a pressure vessel grade steel which works well in elevated temperatures and our material serves this purpose well. And with good corrosion and oxidation resistance, SA387 Grade 22 Class 2 plates are a good option for sour gas environments too.

Bozhong stock SA387 Grade 22 carbon alloy plates and are able to dispatch worldwide.

Please refer to our technical specifications below for ASME SA387 Grade 22 Class 2…

Equivalents
BS EN ASTM/ASME DIN
622-515B 10 CRMO910 SA387-22-2 10 CRMO910
Specifications

Chromium & Molybdenum content (according to the ASME specification):

Designation Nominal ChromiumContent (%) Nominal MolybdenumContent (%)
SA387 Grade 22 2.25% 1.00%



Bozhong Can Supply  SA 387 Grade 91 Class 2 Steel Plate as follows:

Thicknesses: 5mm to 150mm
Widths: 1,500mm to 2,500mm
Length: 6,000mm to 12,000mm



SA 387 Grade 22 Class 2 Steel Plate Grade and Specification

Grades

  • ASTM A387 Grade 5 Class 2, Grade 9 Class 2, Grade 11 Class 2, Grade 12 Class 2, Grade 22 Class 2, Grade 91 Class 2.
  • ASME SA387 Grade 5 Class 2, Grade 9 Class 2, Grade 11 Class 2, Grade 12 Class 2, Grade 22 Class 2, Grade 91 Class 2.
  • EN 10028: 16Mo3, 13CrMo45, 10CrMo910
  • BS 1501: 620B, 621B, 622B



SA 387 Grade 22 Class 2 Steel Plate Properties
Chemical Requirements – SA/A387 Grade 22 Class 2

(cast analysis, % by mass, maximum permitted unless indicated otherwise)

C Mn
0.05 – 0.15 0.30 – 0.60 0.025 0.025
Si Cr  Mo
0.50 2.00 – 2.50 0.90 – 1.10
Tensile Requirements – SA/A387 Grade 22 Class 2
Yield MPa Tensile MPa  Elongation (50mm) Reduc’n of Area*
310 min 515 to 690 18% min 40% min
Typical Application of SA 387 Grade 22 Class 2 Steel Plate
  • boilers and pressure vessels,
  • Heat exchangers
  • Flanges, fittings and valves
  • ducting and pipe supports
