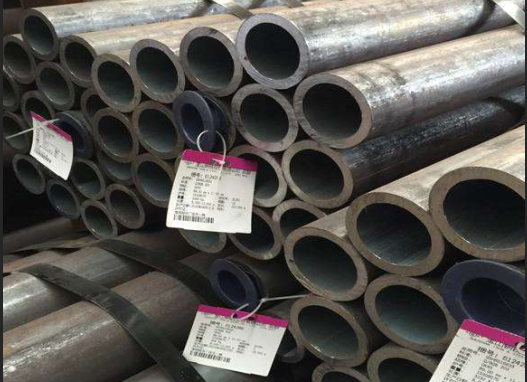

ASTM A335 P9 alloy steel pipe

ASTM A335 P9 alloy steel pipe

Short Description:

Steel grade: ASTM A335 P9 alloy steel pipe Packing of ASTM A335 P9 alloy steel pipe: Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested. Inspection and Test of ASTM A335 P9 alloy steel pipe: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test,...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Steel grade: ASTM A335 P9 alloy steel pipe

    Packing of ASTM A335 P9 alloy steel pipe:

    Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

    Inspection and Test of ASTM A335 P9 alloy steel pipe:

    Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

    Surface treatment of ASTM A335 P9 alloy steel pipe:

    Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
    Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

    ASTM A335 P9 alloy steel pipe alloy steel pipe Chemical Compositions(%)
    Compositions Data
    UNS Designa-tion K41545
    Carbon(max.) 0.15
    Manganese 0.30-0.60
    Phosphorus(max.) 0.025
    Silicon(max.) 0.50
    Chromium 4.00-6.00
    Molybdenum 0.45-0.65
    Other Elements
    Mechanical properties for ASTM A335 P9 alloy steel pipe
    Properties Data
    Tensile strength, min, (MPa) 415 Mpa
    Yield strength, min, (MPa) 205 Mpa
    Elongation, min, (%), L/T 30/20
    Material & Manufacture of ASTM A335 P9 alloy steel pipe

    Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

    Heat Treatment of ASTM A335 P9 alloy steel pipe
    • A / N+T
    • N+T / Q+T
    • N+T
    Mechanical Tests Specified of ASTM A335 P9 alloy steel pipe
    • Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test
    • For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.
    • For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.
