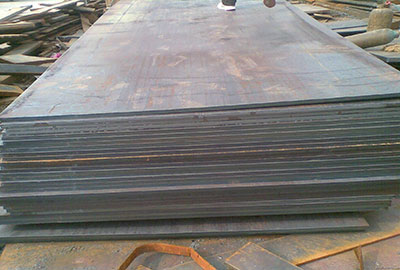

Mat.No. 1.0503, S45C, G10450,AISI 1045

Mat.No. 1.0503, S45C, G10450,AISI 1045

Short Description:

  Designation by Standards   Mat. No. DIN EN AISI 1.0503 C45 - 1045   Chemical Composition (in weight %)   C Si Mn Cr Mo Ni V W Others 0.46 max. 0.40 0.65 max. 0.40 max. 0.10 max. 0.40 - - (Cr+Mo+Ni)= max. 0.63   Description C45 is a medium carbon steel is used when greater strength and hardness is desired than in the “as rolled” condition. Extreme size accuracy, straightness and concentricity combine to minimize wear in high speed applicat...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags



    Designation by Standards



    Mat. No. DIN EN AISI
    1.0503 C45 - 1045



    Chemical Composition (in weight %)



    C Si Mn Cr Mo Ni V W Others
    0.46 max. 0.40 0.65 max. 0.40 max. 0.10 max. 0.40 - - (Cr+Mo+Ni)= max. 0.63



    Description C45 is a medium carbon steel is used when greater strength and hardness is desired than in the “as rolled” condition. Extreme size accuracy, straightness and concentricity combine to minimize wear in high speed applications. Turned, ground and polished. Applications Quenched and subsequently tempered steel for screws, forgings, wheel tyres, shafts, sickles, axes, knives, wood working drills, hammers, etc. Physical properties (avarage values) at ambient temperature Modulus of elasticity [103 x N/mm2]: 205 Density [g/cm3]: 7.85 Specific heat capacity[J/g.K]: 0.48 Coefficient of Linear Thermal Expansion 10-6 oC-1



    20-100oC 20-250oC 20-500oC
    11.5 13.0 14.0



    Soft Annealing Heat to 680-710oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 207. Normalizing Normalizing temperature: 840-880oC/air. Hardening Harden from a temperature of 820-860oC followed by water or oil quenching. Tempering Tempering temperature: 550-660oC/air. Mechanical Properties in Quenched+Tempered Condition



    Diameter d (mm) Thickness t (mm) 0.2 % proof stress (N/mm2) Tensile strength (N/mm2) Elongation A5 (%) Reduction Z (%)
    <16 <8 min. 490 700-850 min. 14 min. 35
    <17-40 <8<=20 min. 430 650-800 min. 16 min. 40
    <41-100 <20<=60 min. 370 630-780 min. 17 min. 45



    Mechanical Properties in Normalized Condition



    Diameter d (mm) Thickness t (mm) 0.2 % proof stress (N/mm2) Tensile strength (N/mm2) Elongation A5(%)
    <16 <16 min. 390 min. 620 min. 14
    <17-100 <16<=100 min. 305 min. 305 min. 16
    <101-250 <100<250 min. 275 min. 560 min. 16



    Diagram Tempering Temperature – Mechanical Properties Forging Hot forming temperature: 1050-850oC. Machinability No data. Disclaimer The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
