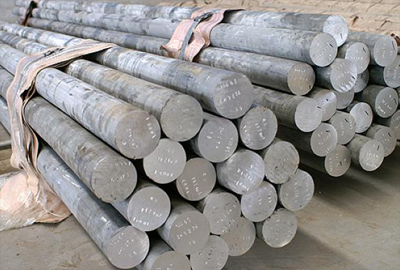

Mat.No. 1.7218, DIN 25CrMo4, AISI 4130

Mat.No. 1.7218, DIN 25CrMo4, AISI 4130

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI VCMO125 722 1.7218 25CrMo4 25CrMo425 4130 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.25 max. 0.40 0.75 1.05 0.23 - - - - DescriptionStructural alloyed carbon steel. ApplicationsStatically and dynamically stressed components for vehicles, engines and machines – axles, turbine components, chains, forgings, etc.  Physical properties (avarage values) at ambient temperatureModulus of...


Product Detail

FAQ

Product Tags

Designation by Standards

Brand Name Ravne No. Mat. No. DIN EN AISI
VCMO125 722 1.7218 25CrMo4 25CrMo425 4130

Chemical Composition (in weight %)

C Si Mn Cr Mo Ni V W Others
0.25 max. 0.40 0.75 1.05 0.23 - - - -

Description
Structural alloyed carbon steel.

Applications
Statically and dynamically stressed components for vehicles, engines and machines – axles, turbine components, chains, forgings, etc.

Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 210
Density [g/cm3]: 7.86

Continuous Cooling Transformation (CCT) Diagram


Click the image to enlarge the diagram.

Time-Temperature Transformation (TTT) Diagram


Click the image to enlarge the diagram.

Soft Annealing
Heat to 680-720oC, cool slowly. This will produce a maximum Brinell hardness of 212.

Noramlizing
Temperature: 840-900oC.

Hardening
Harden from a temperature of 840-870, 850-880oC followed by water or oil quenching.

Tempering
Tempering temperature: 540-680oC.

Mechanical Properties in Hardening and Tempering Condition

Diameter (mm) 0.2 % proof stress (N/mm2) Tensile strength (N/mm2) Elongation (%) Reduction of area (%) Notch impact energy (ISO-V) (J)
up to 16 700 900-1100 12 50 50
17-40 600 800-950 14 55 55
41-100 450 700-850 15 60 55
101-160 400 650-800 16 60 55

Diagram Tempering Temperature – Mechanical Properties


Click the image to enlarge the diagram.

Forging
Hot forming temperature: 1050-850oC.

Machinability
No data.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
