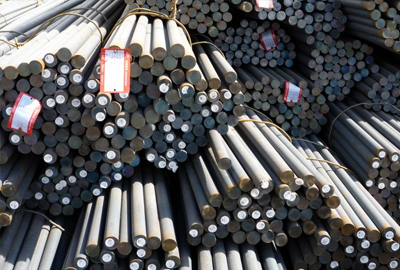

Mat.No. 1.2764, DIN X19NiCrMo4

Mat.No. 1.2764, DIN X19NiCrMo4

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI CT183 183 1.2764 X19NiCrMo4 - - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.19 0.25 0.30 1.25 0.20 4.05 - - - DescriptionSpecial structural steel. ApplicationsSpecial purpose production. Parts of larger cross-sections where higher toughness is demanded, for gears, crankshafts, etc.  Physical properties (avarage values) at ambient temperatureModulus of elasticity [103 x N/mm2]: 210...


Product Detail

FAQ

Product Tags

Designation by Standards

Brand Name Ravne No. Mat. No. DIN EN AISI
CT183 183 1.2764 X19NiCrMo4 - -

Chemical Composition (in weight %)

C Si Mn Cr Mo Ni V W Others
0.19 0.25 0.30 1.25 0.20 4.05 - - -

Description
Special structural steel.

Applications
Special purpose production. Parts of larger cross-sections where higher toughness is demanded, for gears, crankshafts, etc.

Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 210
Density [g/cm3]: 7.80

Soft Annealing
Heat to 620-660oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 255.

Intermediate Annealing
Temperature: 600-630oC.

Carburizing
Temperature: 860-890oC.

Hardening
Harden from a temperature of 780-810oC followed by oil quenching or thermal bath at 180-220oC.

Tempering
Tempering temperature: 150-180oC.

Forging
Hot forming temperature: 1050-850oC.

Machinability
No data.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
