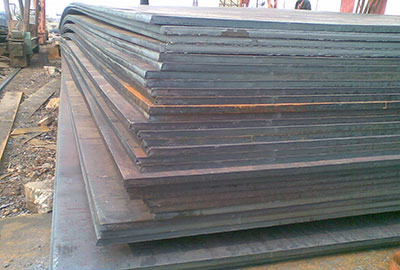

Mat.No. 1.0601, DIN C60, AISI 1060

Mat.No. 1.0601, DIN C60, AISI 1060

Short Description:

Designation by Standards Mat. No. DIN EN AISI 1.0601 C60 - 1060 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.61 max. 0.40 0.75 max. 0.40 max. 0.10 max. 0.40 - - (Cr+Mo+Ni)= max. 0.63 Description C60 is one of the higher carbon content (0.60%) steels. It is more difficult to fabricate than the lower carbon grades.  Applications Applications include hand tools such as screwdrivers, pliers and similar items.  Physical properties (avarage values) at ambient tem...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Designation by Standards

    Mat. No. DIN EN AISI
    1.0601 C60 - 1060

    Chemical Composition (in weight %)

    C Si Mn Cr Mo Ni V W Others
    0.61 max. 0.40 0.75 max. 0.40 max. 0.10 max. 0.40 - - (Cr+Mo+Ni)= max. 0.63

    Description C60 is one of the higher carbon content (0.60%) steels. It is more difficult to fabricate than the lower carbon grades.  Applications Applications include hand tools such as screwdrivers, pliers and similar items.  Physical properties (avarage values) at ambient temperature Modulus of elasticity [103 x N/mm2]: 210  Density [g/cm3]: 7.85 Thermal conductivity [W/m.K]: 46.6  Electric resistivity [Ohm mm2/m]: 0.127 Specific heat capacity[J/g.K]: 0.46 Coefficient of Linear Thermal Expansion 10-6 oC-1

    20-100oC 20-200oC 20-300oC 20-400oC 20-500oC
    11.1 12.1 12.9 13.5 13.9

    Soft Annealing Heat to 680-710oC, cool slowly in furnace. This will produce a maximum Brinell hardness of 241. Normalizing Normalizing temperature: 820-860oC/air. Hardening Harden from a temperature of 800-840oC followed by water or oil quenching. Tempering Tempering temperature: 550-660oC/air. Mechanical Properties in Hardened+Tempered Condition

    Diameter (mm) 0.2 % proof stress (N/mm2) Tensile strength (N/mm2) Elongation A5(%) Reduction Z (%)
    up to 16 570 830-980 11 20
    17-40 490 780-930 13 30
    41-100 450 740-890 14 35

    Mechanical Properties in Normalized Condition

    Diameter (mm) 0.2 % proof stress (N/mm2) Tensile strength (N/mm2) Elongation A5 (%)
    up to 16 min. 380 min. 710 min. 10
    17-100 min. 340 min. 670 min. 11
    101-250 min. 310 min. 650 min. 11

    Diagram Tempering Temperature – Mechanical Properties Click the image to enlarge the diagram. Forging Hot forming temperature: 1100-800oC.  Machinability Machinability of C60 and all of the higher carbon steels is relatively poor. C60 rates at 55 to 60 % that of the AISI 1112 steel which is considered 100% machinable.  Corrosion Resistance  This steel is not corrosion resistant. it will rust unless protected. Welding  C60 may be welded by all of the conventional methods. However both pre-heat and post-heat should be used when welding by an approved procedure. Pre-heat at 260 to 320oC and post-heat at 650 to 780oC. Cold working  Cold working is difficult even in the annealed condition although it may be done by conventional methods but requires greater force than the lower carbon steels. Forms manufactured: Please see the Dimensional Sales Program.  Disclaimer The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available. Unless otherwise specified, registered trademarks are property of Metal Ravne company. Copyright 2015 by Metal Ravne. All rights reserved. Contact our Sales Office for more information.
